Start by locating the thermostat – typically mounted near the base or middle section of the tank. Modern models include dual controls: one for regulating temperature (usually set to 120–140°F for optimal efficiency), the other as a safety override. If adjusting, turn off power at the circuit breaker first, then remove the access panel to expose the wiring. Incorrect calibration leads to energy waste or insufficient heating.
The heating elements, often two in residential units, sit inside immersion wells threaded into the tank’s side. The upper element activates first during a heating cycle, ensuring hot liquid rises naturally. Element failure accounts for 40% of service calls; test continuity with a multimeter (0–50 Ω indicates functionality). Replace corroded or blackened elements immediately–sediment buildup reduces lifespan by 30–50%.
Inspect the anode rod annually by unscrewing it from the top port. Magnesium rods degrade faster than aluminum; prioritize magnesium for hard-water areas. A depleted rod (less than ½ inch diameter) allows tank corrosion–check for sulfur odor or discolored discharge as early warnings. Replacement costs $20–$50, far cheaper than a ruptured tank.
Examine the dip tube, concealed beneath the cold liquid inlet. Cracked or broken tubes cause lukewarm output, forcing the upper element into constant operation. Modern tubes resist chlorinated systems better than older PVC versions. Remove the inlet pipe to access; installation requires pipe sealant (not Teflon tape) to prevent leaks.
Valves on the unit serve distinct roles: the temperature-pressure relief (TPR) valve at the top vents excess pressure (150 PSI or 210°F), a critical safety feature. Test monthly by lifting the lever; releasing liquid confirms proper function. The drain valve at the base simplifies sediment removal–attach a garden hose, open it every 6 months, and flush until clear liquid flows.
Identify wiring compartments by tracing cables from the power source to the junction box. Loose or burned wires create resistance, overheating the breaker. Use 10-gauge wire or thicker for 240-volt units; secure connections with heat-shrink terminals. Miswired systems risk tripping circuits or damaging components–match terminal markings (L1/L2) precisely.

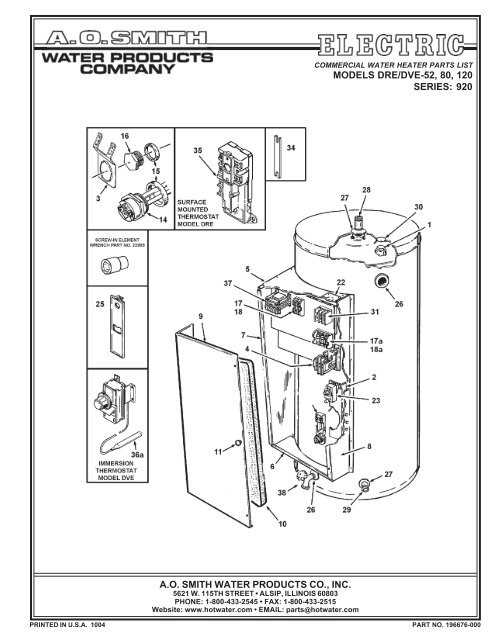

Understanding Your Boiler’s Internal Layout
Locate the anode rod near the upper flange–it’s the sacrificial metal component that prevents tank corrosion by drawing minerals away from the lining. Most models use magnesium or aluminum rods, but newer hybrids feature powered titanium variants lasting 6-10 years. Check the rod’s diameter (typically 0.75 inches) and exposed threading length (usually 1-1.5 inches) before purchasing replacements to ensure compatibility. Installing a rod too short creates a 3-5% efficiency drop due to accelerated sediment buildup.
Thermostats on residential units are dual-mounted: one monitors the upper element (130°F–140°F range), while the lower maintains consistent temperatures in the 110°F–120°F zone. Adjust using a flathead screwdriver–each numeral shift (1-9) corresponds to a 10°F change. Factory presets often err on the side of caution (125°F), but increasing to 135°F reduces bacterial growth without significantly raising energy consumption (usually under 5% increase).
The heating elements–one submerged at the base, another mid-tank–operate on 240V circuits (4500W is standard for 50-gallon tanks). Verify wattage by checking the data plate: resistance should read ~12.8Ω for a 4500W element. Replace elements with the tank drained and power disconnected; even 1 inch of remaining fluid can cause arcing. Use a multimeter on the ohms setting–continuity confirms functionality, while infinite resistance signals a burnt-out element.
Dip tubes, often overlooked, extend from the cold inlet to the tank’s bottom, directing incoming flow to prevent mixing with stored output. Cracked or collapsed tubes reduce recovery rates by 20-30% and create tepid showers. Inspect annually by removing the inlet pipe: tubes should be rigid (polypropylene is common) with no segmentation. Replacements measure 0.5 inches in diameter and vary in length (48-54 inches for standard tanks).
Safety valves, typically brass with a 150 psi rating, require annual testing by lifting the lever–steam should vent forcefully, then reseat with a distinct click. If leaks persist, replace the valve entirely; never cap or restrict it. Models with expansion tanks (common in closed systems) benefit from a thermal expansion valve set 10 psi below the main safety valve’s rating. Pressure readings above 80 psi indicate a failing regulator or excessive municipal supply.
Drain valves at the tank’s base use plastic or brass construction–brass lasts longer but may seize in hard-water areas. Flush tanks every 6-12 months using the valve; sediment deeper than 0.5 inches insulates the lower element, increasing energy use by 10-25%. For stubborn sediment, attach a garden hose and open the valve fully–agitate by tapping the lower tank wall with a rubber mallet. After flushing, close the valve clockwise; overtightening cracks plastic valves.
Insulation jackets (R-6 to R-13) reduce standby losses by 15-30%. Wrap tightly around the tank, overlapping at seams, and secure with foil tape–avoid compressing the material, which degrades its efficiency. Modern fiberglass or polyethylene foam jackets replace foam-in-place designs, which often degrade within 8-10 years. Measure tank circumference (typically 60-72 inches for 50-gallon units) and height before purchasing to ensure full coverage.
Electrical connections terminate at a terminal block near the upper access panel. Torque screws to 12-15 inch-pounds using a calibrated screwdriver–overtightening strips threads, while loose connections cause arcing (visible as blackened terminals). Replace degraded wires with 10-gauge copper rated for 60°C minimum; aluminum wiring from older units requires antioxidant paste at connections to prevent oxidation. Always label wires before disassembly–240V circuits have no neutral, only two hot leads and ground.
Critical Elements Within a Storage Cylinder for Hot Liquids
Check the anode rod every 12–18 months; replacement prevents corrosion from attacking the inner lining. Magnesium rods degrade faster in hard-liquid zones, whereas aluminum rods last longer but leave sediment.
Locate the thermostat behind the lower access panel; set it to 120–125°F (49–52°C) to balance safety and performance. Higher settings waste energy and accelerate scale buildup on elements.
- Upper heating element: draws 3500–5500 watts, controls primary volume.
- Lower element: 1500–3000 watts, maintains temperature in standby mode.
Inspect dip tube condition annually; cracks or breaks cause cold inflow to mix with stored output, lowering output temperature. Replace if length measures less than original by more than 6 inches.
Drain valve threads require annual sealing compound refresh; PTFE tape degrades under continuous heat cycles, risking slow leaks that erode the tank base over time.
- Pressure relief device must open at 150 psi or 210°F (99°C); test yearly by lifting lever for 5 seconds.
- Temperature sensor sits near lower element; resistance should read 20–30 kΩ at room temperature.
Sediment buildup at the bottom acts as insulation; flush tank every 3–6 months using a hose connected to the drain valve, running until discharge clears. Hard-liquid areas require more frequent flushing.
How to Locate and Identify Heating Elements in Your Unit
Begin by shutting off power at the circuit breaker–use a non-contact voltage tester to confirm the system is dead. Most storage tanks have two terminal panels: one near the base and another midway up the side. Remove the screws securing these panels with a Phillips-head screwdriver to expose the internal components. Look for cylindrical metal rods with threaded ends protruding from the tank’s insulation; these are the core heat sources. A single-phase unit typically has one or two rods, while three-phase models may house three.
Check the element’s wattage rating–this is usually stamped on a small metal tag near the terminals or printed directly on the porcelain base. Common domestic tanks run 3500W or 4500W; commercial units can exceed 6000W. If markings are worn, use a multimeter set to ohms (Ω) to measure resistance: divide the voltage (240V) squared by the wattage to determine expected resistance. Values typically range between 12-20Ω for 4500W rods.
Key Identification Features
| Feature | Description | Typical Measurement |
|---|---|---|
| Thread Size | Threaded end dimensions | 1″ NPT or 1-1/4″ NPT |
| Terminal Spacing | Distance between screw terminals | 1.25″ to 1.5″ |
| Sheath Length | Total rod length inside tank | 12″–24″ |
| Base Material | Porcelain or brass housing | White/cream (porcelain) |
For dual-element tanks, note that the upper rod often extends deeper into the reservoir, while the lower one sits just above the sediment line. If corrosion is visible around the flange or terminals, prepare for replacement–detach wires using a 5/16″ nut driver, then unscrew the element with a 1-1/2″ socket wrench. Keep a bucket nearby; residual liquid may drain when removing the rod.
Step-by-Step Guide to Testing a Faulty Thermostat
Before starting, ensure power to the unit is completely disconnected. Locate the access panel and remove it using a screwdriver–most models require a Phillips-head. Keep the screws in a secure place to avoid misplacement. The thermostat is typically mounted near the base or mid-section, secured by clips or screws.
Set a multimeter to the lowest ohms of resistance (Ω) setting, usually 200Ω. Touch the probes together to verify the meter reads near zero–this confirms functionality. If the display shows “OL” or an open circuit, replace the multimeter’s battery or probes before proceeding.
Identify the thermostat’s terminals, often labeled L1, T1, T2, or High Limit. For a dual-element system, test both upper and lower components separately. Place one probe on L1 and the other on T1. A reading between 10Ω and 50Ω indicates a functional thermostat. A zero reading suggests a short, while an open circuit (infinite resistance) means failure.
Test the high-limit switch by placing probes on L1 and the high-limit terminal. Normal operation should yield near-zero resistance. If the meter reads infinity, the switch has tripped or failed–reset it by pressing the red button if present. If resistance remains infinite after reset, the component must be replaced.
For adjustable thermostats, rotate the dial to its highest setting while monitoring resistance. The reading should drop sharply as the bimetallic strip closes. Slow or inconsistent changes indicate wear or calibration issues. Reassemble the unit only after confirming all readings meet manufacturer specifications–refer to service manuals for exact values.
If all tests pass but the system still malfunctions, inspect wiring for corrosion or loose connections. Replace any damaged wires using heat-resistant, moisture-proof equivalents. Reattach the access panel securely, restore power, and monitor the unit for 30 minutes to ensure stable operation. Failure to heat within this period warrants further diagnostics or professional servicing.
