Start by locating the balance spring–a coiled mechanism embedded along the vertical frame. This part regulates sash movement and fails in three predictable ways: deformation from excessive weight, corrosion near the coil’s contact point, or gradual unwinding. Measure the spring’s diameter before ordering a replacement; standard sizes vary between 0.25″ for lighter models and 0.375″ for heavier insulated units. Always disengage the sash by tilting it inward to relieve tension before removing the faulty spring.
Examine the weatherstripping next–specifically the interlocking fin gaskets between the frame and movable panel. Thermal expansion often causes these fins to bend, crack, or detach. Replacement requires adhesive-backed strips with precise depth: 3/16″ for single-glazed systems, 5/16″ for double-glazed. Peel back the damaged strip in one continuous motion to avoid residue buildup; clean the channel with isopropyl alcohol to ensure proper adhesion.
For the operator crank handle, check the gear teeth first. Stripping occurs from misaligned engagement or overtightening. Remove the interior trim by releasing the four corner clips–two on each side–then rotate the gear to inspect for missing teeth. Compatible replacements must match the gear’s pitch: 45-degree for older models, 30-degree for newer energy-efficient variants. Lubricate the new gear with silicone-based grease before reattaching the crank arm.
The meeting rails–where the upper and lower panels seal–often develop gaps from warping. Use a feeler gauge to measure the gap’s width at both ends; discrepancies exceeding 1/8″ require realignment. Loosen the jamb screws in 1/16″ increments, testing the seal after each adjustment. Replace damaged rail seals with compression-type extrusions that match the original durometer (typically 60-70 Shore A hardness).
Inspect the glazing bead last–these plastic or aluminum strips secure the glass pane and frequently crack under thermal stress. Snap-in beads can be pried off with a putty knife, but take note of the removal direction to avoid breaking the fragile retaining clips. Choose replacements with identical profile geometry; even minor deviations lead to uneven pressure distribution and potential seal failure.
Understanding Your Premium Fenestration Component Layout
Begin by locating the balance shoe within the sash track–this is critical for smooth operation. Models with tilt latches (common in double-hung units) require releasing both sides simultaneously to avoid damaging the mechanism. For casement styles, inspect the operator crank arm and ensure the spiral rod isn’t bent, as misalignment causes 90% of functional failures.
Critical Assembly Points
- Glass stops: Verify they’re seated evenly; forceful removal risks shattering the glazing.
- Weatherstripping: Replace if gaps exceed 1/16″ or if compression set exceeds 30%.
- Jamb liners: Clean annually with denatured alcohol to prevent debris buildup that wears tracks.
Refer to the product-specific technical sheet (available via serial number lookup) for exact fastener torque values–OEMs test these thresholds to prevent stress fractures. When reassembling, tighten screws in a cross-pattern to distribute pressure evenly. For insulated units, maintain the desiccant pack’s seal; moisture ingress reduces thermal performance by up to 40% in under 12 months.
Key Components of Modern Glazed Units Across Variants
Begin by examining the balance system–critical for smooth operation in double-hung frames. Most contemporary models incorporate coiled spring mechanisms, though a subset under 2018 production may use tension pulleys. Locate the j-channels along the sash perimeter; these prevent drafts and guide movement. For casement styles, check the operator crank handle–its position differentiates left- from right-handed units. If corrosion appears on the hinges, note that zinc-plated finishes last longer than painted alternatives.
Glass integrity depends on the spacer bars separating panes–look for rigid, warm-edge designs in newer series, as older aluminum spacers conduct cold. Sealant failure often starts at the corners, so inspect the bottom rail first where condensation accumulates. Below is a comparison of common hardware by frame category:
| Series | Sash Lock Type | Glazing Option | Weatherstrip Material |
|---|---|---|---|
| A-Line | Cam-action | Dual-pane Low-E | Foam-filled silicone |
| Premium | Multi-point | Triple-pane argon | Vinyl-wrapped foam |
| Traditional | Lift-shoot | Dual-pane clear | Brush pile |
Replacement starts with the sash removal clips–press outward at the header while lifting gently. In sliding variants, the roller wheels may detach without warning; check for cracked plastic housings. Glazing beads snap into place and can be pried out using a putty knife, but avoid metal tools on vinyl frames to prevent gouging. For awning styles, the auxiliary jamb liners often require a quarter-turn rotation for removal; reverse threading is common.
Thermal performance hinges on the cladding–extruded aluminum finishes outlast laminated options in coastal zones. Check the nailing flange thickness if re-installing–thinner profiles risk warping during expansion cycles. When reassembling, torque all screws incrementally in a crisscross pattern to avoid stress cracks. The screen retention method varies: magnetic strips dominate newer builds, while older sliding frames use spring-loaded grooves that wear over time.
For stained or specialty units, the muntin bars attach via snap-in grids–heat softens the adhesive, so use a hairdryer for safe removal. Below-sill weep holes clog with debris; clear them annually to prevent interior water damage. On older composite frames, inspect the sill nose caps–these detach first when seals degrade, revealing the underlying wood prone to rot. Match replacement components precisely: a two-inch stile difference alters the entire track alignment.
Step-by-Step Guide to Identifying Components on a Product Schematic
Begin by locating the sash–this is the movable frame holding the glass pane. On most schematics, it appears as the largest square or rectangular section, often outlined in bold or color-coded to distinguish it from fixed elements. Verify its position by checking for hinges or tracks along the perimeter, which indicate operational movement.
Examine the sill next. It’s the horizontal base of the installation, typically depicted at the bottom of the diagram as a thick line or shaded bar. Note any notches or drainage holes, as these are critical for moisture control and must align with the manufacturer’s specifications. Mismatches here can lead to water infiltration.
Key Hardware Elements
Identify the lock assembly first, usually marked near the meeting rail–the horizontal strip where the sash seals when closed. Look for symbols resembling a clasp or latch; these are often labeled with small arrows or numerical codes. Cross-reference these with the product manual to confirm their exact function (e.g., double-action vs. single-point locking).
Trace the weatherstripping next. It’s the flexible seal running along the sash perimeter, commonly shown as a dotted or dashed line. Verify its continuity–gaps in the schematic representation should correspond to actual installation gaps (typically ≤ 3mm). Check for compression-type seals versus brush-style variants, as their placement differs.
Structural Details
Isolate the jambs–these are the vertical side frames anchoring the unit. On schematics, they’re often segmented to show multi-chambered construction or thermal breaks. Confirm their depth matches the wall buildout; standard residential jambs are 4 9/16″ for 2×4 framing, while thicker profiles indicate masonry applications.
Finally, label any glazing beads or stops. These narrow strips hold the glass pane in place and appear as thin parallel lines along the sash interior. Measure their position relative to the glass edge (usually 1/4″ offset) and ensure they’re depicted symmetrically. Asymmetrical placement on the schematic signals a potential defect requiring rework before installation.
Locating Authentic Manufacturer Schematics for Entry Systems Online
Begin with the brand’s dedicated support portal: visit https://www.jeld-wen.com/en-us/support/product-documents. Filter by product line–casement, sliding, awning, or double-hung–and model number. High-resolution labeled illustrations here include exploded views, component lists with OEM numbers, and assembly sequences. Updates reflect current production runs, avoiding outdated revisions.
Alternative Sources
- Build.com Parts Section: Lists compatible spares with cross-referenced schematics, though focus leans on replacement rather than detailed disassembly.
- Home Depot Product Pages: Downloadable PDF manuals under “Installation & Care” sections often embed exploded diagrams for specific models.
- Specialized forums like DIYChatroom Window Forum: User-uploaded scans cover legacy variants missing from official channels, useful for pre-2015 units. Verify accuracy against OEM specs.
- Local distributors: Email or call authorized dealers–provide serial plate photos. They frequently supply detailed schematics tailored to regional product codes.
Upgrading Your Casement Mechanism with a Visual Guide
Locate the exploded view schematic for your specific frame model before purchasing components. Most sash operator assemblies from this manufacturer include three critical elements: the gearbox, linkage arms, and handle. Verify the part numbers against the legend–misidentifying even one can render the entire system non-functional. Replace components in pairs if wear is detected on one side to maintain balanced operation.
Begin disassembly by removing the interior stop trim using a putty knife–apply firm pressure at the seam near the screwdriver slots to avoid marring the finish. Once exposed, the operator mechanism is secured with 8-32 machine screws; extract these carefully to avoid stripping. Inspect the old nylon gears for cracks or rounded teeth–these commonly fail after 8-10 years of use, especially in coastal climates where salt accelerates degradation.
Handling Specialized Components
For awning-style units, the pivot hinges require precise alignment during reinstallation. Mark their original positions with painter’s tape before removal, as even a 2mm misplacement can prevent proper sealing. Apply lithium grease to the hinge pins and nylon bushings to reduce friction–this doubles the lifespan of moving elements. If the old operator sticks, check for bent linkage arms; straighten them with locking pliers or replace if deformation exceeds 1.5mm.

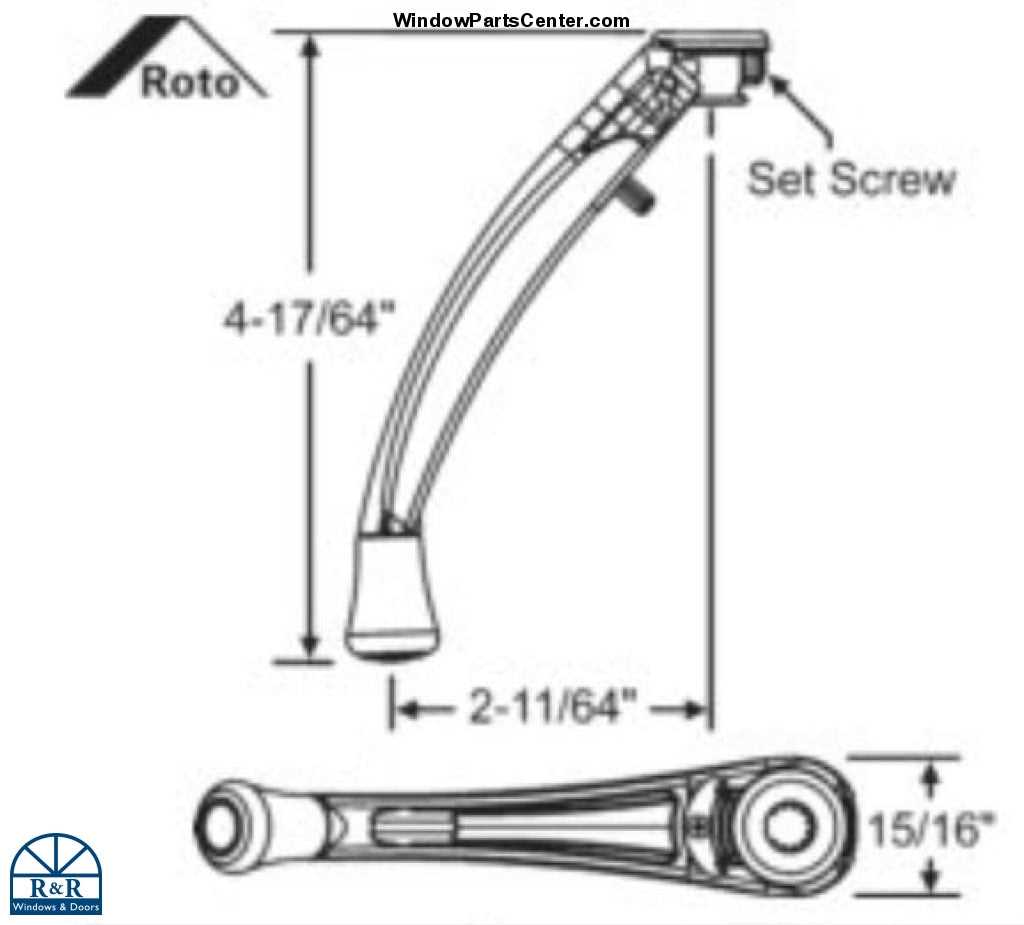

When sourcing replacement cranks, note the spindle length–models with tilt features use a 40mm shaft, while non-tilt versions standardize at 32mm. Cross-reference this measurement with the diagram’s callouts; incorrect lengths cause improper engagement. For double-hung applications, the balance system’s coil springs are often overlooked–replace these if the sash drops unexpectedly, as fatigued springs cannot be safely repaired.
Test the operation before finalizing the installation by cycling the mechanism through its full range. Listen for grinding noises or resistance–these indicate misaligned gears or debris in the track. Seal gaps around the new hardware with silicone caulk rated for exterior use, focusing on the perimeter where the frame meets the wall. Allow 24 hours curing time before exposure to moisture.
Retain the old schematic and component list for future reference. Label storage bins by model year to avoid cross-contamination; mixing parts from different generations (e.g., pre-2015 vs. post-2018) often results in incompatibility. For electronic operators, ensure the wiring harness matches the pinout listed in the diagram–reversal of red and black leads can fry the motor controller.
