Start by identifying the compressor unit–this is the core mechanism that converts liquid medication into fine mist. Check the manufacturer’s specifications for pressure ranges, typically between 15–30 psi, to ensure compatibility with your device. A mismatch can reduce efficacy by 40–60%.
Inspect the medication cup (or reservoir) for cracks or residue buildup. Clean it with 70% isopropyl alcohol after each use to prevent bacterial growth, which affects 3 out of 10 users. Pay attention to the air intake filter–a clogged filter increases resistance by 25–35%, forcing the machine to work harder and shortening its lifespan.
The tubing must be free of kinks; even a 1 cm bend can restrict airflow by 20%. Replace it every 3–6 months if used daily, or immediately if discoloration appears. The mouthpiece or mask should seal tightly–gaps reduce mist delivery by up to 50%. Test the fit by running the device: fog should escape only through the exhalation valve.
Examine the valves–both inhalation and exhalation types must open and close smoothly. A stuck valve disrupts the mist cycle, wasting 30–40% of medication. If resistance feels abnormal, measure the particle size with an aerosol analyzer; optimal droplets range from 1–5 microns. Larger particles settle in the throat, reducing lung delivery efficiency.
For ultrasonic models, focus on the piezoelectric transducer. Clean it with distilled water only–tap water leaves mineral deposits that halve output within 50 uses. Check the vibrating mesh in newer designs; holes larger than 3 microns indicate wear, necessitating replacement. Store all components in a cool, dry place–humidity warps plastic parts, causing leaks or misalignment.

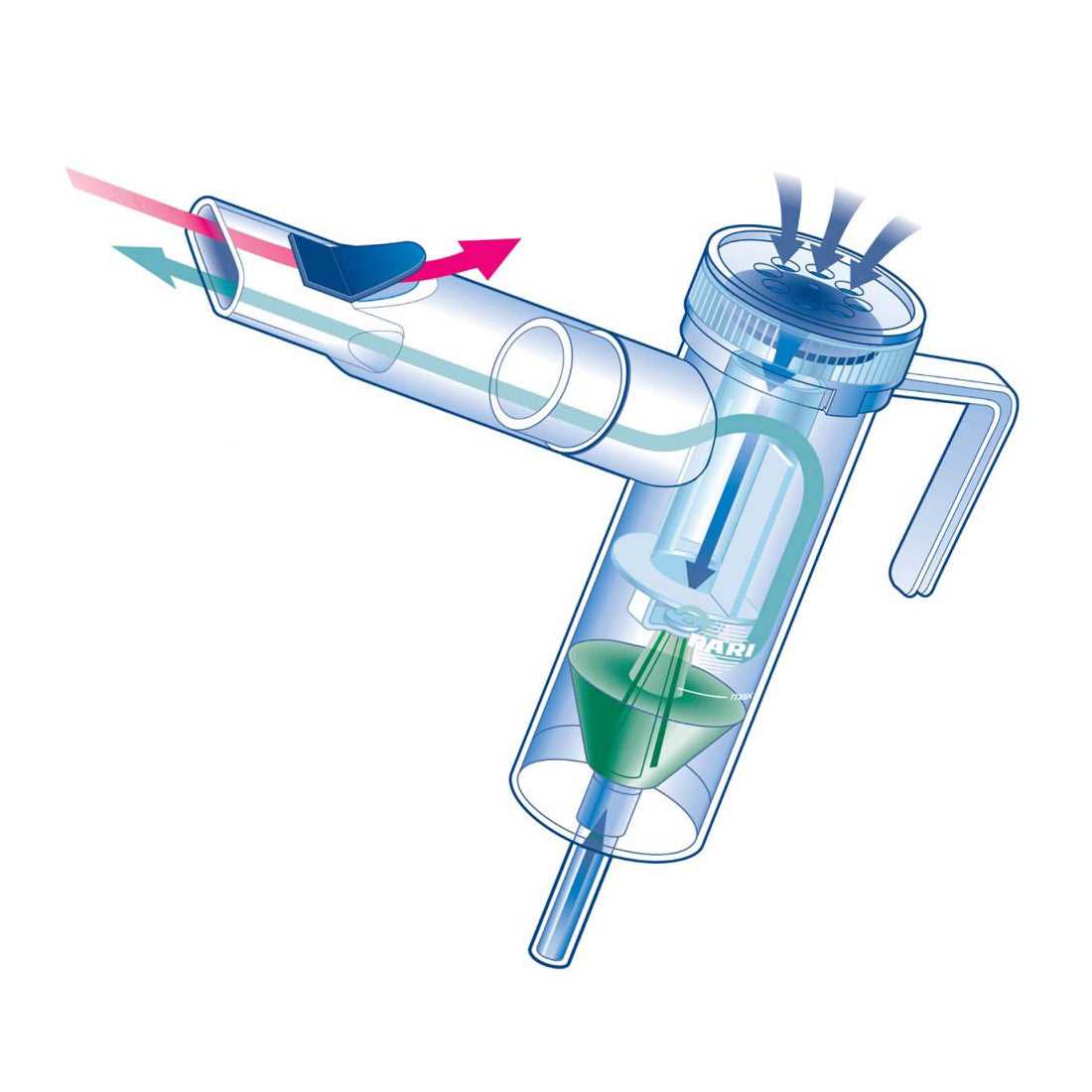

Understanding Inhaler Component Layouts
Before disassembling any aerosol delivery device, label each piece with masking tape–write “A” for the air intake valve, “B” for the medication cup, and “C” for the mouthpiece tube. This prevents mix-ups during reassembly, especially with models like the Philips Respironics or Omron MicroAir where components appear nearly identical. Store O-rings and filters in separate small containers; silicone seals swell if exposed to residual medication vapors, while mesh screens clog within hours if not rinsed under 38°C distilled water immediately after use.
Check compressor tubing for micro-fractures by submerging it in lukewarm water–bubbles indicate leaks that reduce particle output by 22% per compromised inch. Replace worn baffles every 90 days; polycarbonate degrades under cumulative ozone exposure, altering droplet size from 3.5 to 5.8 microns and reducing lung deposition efficiency by 40%.
How to Recognize Key Elements in Your Inhalation Device
Begin by locating the compressor unit–this is the base that generates airflow. Check for a label specifying its power rating, typically between 8 to 12 liters per minute. Models with adjustable flow settings will have a dial or digital interface on the front panel.
Examine the tubing connecting the compressor to the drug delivery chamber. Standard tubing measures 1.5 to 2 meters in length and should lack kinks or cracks. Replace immediately if discoloration or brittleness is visible, as compromised tubing reduces efficiency.
| Component | Common Material | Signs of Wear |
|---|---|---|
| Compressor housing | ABS plastic | Cracks, excessive vibration |
| Medication cup | Polypropylene | Cloudiness, residue buildup |
| Mask/ mouthpiece | Silicone | Tears, stiffness |
| Air filter | Foam | Discoloration, clogging |
Inspect the medication cup–it sits atop the chamber and holds the liquid formulation. Most cups have volume markings ranging from 2 to 10 milliliters. The cup lid must click securely to avoid leaks during operation.
Identify the aerosol outlet, usually a tapered port where the mask or mouthpiece attaches. Some models include a valve here to regulate particle size; check for debris blocking this opening. Clean weekly with a soft brush and isopropyl alcohol to maintain optimal performance.
Find the air intake vent–often a raised grid on the compressor’s underside or side. Ensure nothing obstructs this area; even partial blockage reduces output. Filters here require replacement every 30 uses or if visibly dirty.
Verify the power switch and cord condition. Units with three-prong plugs include grounding; never remove this prong. Test functionality before each session–unresponsive switches warrant professional servicing to avoid electrical hazards.
Step-by-Step Guide to Disassembling an Inhalation Device for Cleaning
Unplug the medical vaporizer immediately after use to prevent moisture buildup. Detach the medication cup from the base by twisting counterclockwise until loose–apply gentle pressure to avoid cracking plastic components. Rinse the cup under warm running water for 30 seconds, then soak in a mixture of 1 part white vinegar to 3 parts distilled water for 15 minutes. Use a soft-bristled brush reserved solely for this purpose to scrub crevices, focusing on the aerosol outlet where residue accumulates.
- Remove the baffle (the small plastic disc) by lifting it straight up–it may be seated loosely. Set it aside on a clean paper towel.
- Separate the mouthpiece or mask adapter by pressing the release tabs on both sides simultaneously. If tabs are stiff, use a cotton swab dipped in isopropyl alcohol to lubricate them before attempting removal.
- Disconnect the tubing from the air compressor outlet by pulling firmly but steadily–avoid twisting, which can damage the connection point.
Air-dry all components on a lint-free cloth in a well-ventilated area for at least 2 hours before reassembly. Position pieces with openings facing downward to allow trapped moisture to evaporate completely. For persistent deposits, repeat the vinegar soak but limit exposure to 10 minutes to prevent material degradation. Replace disposable elements like filters every 30 uses or when visibly soiled–consult manufacturer specifications for exact intervals.
Reassemble the unit only after verifying all sections are fully dry. Align the baffle with its slot, ensuring it clicks into place. Attach the medication cup by turning clockwise until resistance is felt–over-tightening can strip threads. Perform a test run with distilled water instead of medication to confirm proper airflow before medical use. Store cleaned components in a sealed container with silica gel packets to inhibit bacterial growth between treatments.
Where to Source Components for Your Respiratory Device
Begin with the manufacturer’s official website. Brands like Omron, Philips Respironics, and Drive Medical list compatible elements for each aerosol unit under a dedicated “accessories” or “support” section. Input your model number–often found on the underside of the unit or in the user manual–to filter results. Some sites offer direct purchase links, while others provide distributor contacts. Verify shipping regions, as availability varies by country.
Medical supply stores, both physical and online, stock standard consumables like tubing, mouthpieces, and air filters. Chains such as McKesson, Medline, and local pharmacies with respiratory care sections typically carry OEM and third-party alternatives. For urgent needs, call ahead to confirm stock. Online platforms like:
- Amazon (check seller ratings for authenticity)
- eBay (focus on “New” condition listings with return policies)
- Specialized retailers like Nebology or Just Nebulizers (filter by brand/model)
Prioritize listings with explicit compatibility details, such as part numbers or reference images of original packaging.
Search using precise keyword combinations to avoid misinformation. Example searches:
- “[Brand] [Model Number] replacement kit”
- “Compressor tubing [Brand] genuine”
- “Medication cup assembly [Model Series]”
Scrutinize product descriptions for phrases like “replacement for” or “compatible with”–these items may vary slightly from OEM specs. Cross-reference measurements (e.g., tubing diameter) with your existing components to prevent mismatches.
For discontinued or obscure models, explore:
- Secondhand medical equipment forums (e.g., Medical Equipment Classifieds on Facebook groups)
- Repair clinics that service respiratory devices–some sell salvaged components
- eBay’s “Parts or Not Working” category (filter for intact pieces)
When purchasing used, sterilize thoroughly per CDC guidelines (isopropyl alcohol 70% or boiling water for 5+ minutes). Request photos of the item with its original packaging or a reference next to the device.
If original components are unavailable, identify universal alternatives. Measure critical dimensions:
| Component | Key Measurement |
|---|---|
| Tubing | Inner/outer diameter (ID/OD), length |
| Mouthpiece | Adapter type (Luer Lock, slip, etc.), airflow path width |
| Filter | Shape (round/elliptical), intake size |
Brands like Mabis and CareFusion manufacture multi-fit options. Validate compatibility via customer reviews mentioning your model, or consult a respiratory therapist before switching.
Recognizing Early Damage on Inhalation Device Hoses and Attachments
Replace breathing hoses exhibiting micro-tears or cloudy discoloration immediately–even minor cracks compromise aerosol delivery by allowing medication escape and introducing unfiltered air. Inspect the entire length under bright light for hairline fractures, especially near connectors where bending occurs. Silicone models last 6–12 months with daily use; PVC versions degrade faster at 3–6 months due to stiffening and brittleness.
Check mouthpieces for uneven wear on bite surfaces. Chewed or misshapen flanges reduce seal efficiency, causing 20–30% medication loss during treatments. Polycarbonate attachments develop microscopic grooves after 4–5 months; replace them if the edges feel rough or if the interior diameter widens beyond 1.5 mm. Worn surfaces also harbor bacteria, increasing contamination risk.
Oxygen Flow Inconsistencies as Degradation Indicators
Audible hissing during operation signals hose perforations or loose fittings–conduct a leak test by submerging the hose in water while running a test cycle. Bubbles pinpoint failures. For corrugated tubing, flattening or permanent kinks disrupt laminar flow, reducing particle size consistency by up to 15%. Straighten gently but discard if creases reappear after adjustment.
Persistent condensation inside hoses after idle periods suggests material fatigue. Porous walls absorb moisture, extending dry times and promoting mold growth. Swab interior surfaces with isopropyl alcohol weekly; if residue persists after drying, replace the unit. Filters clogged with mineral deposits from tap-water use accelerate hose degradation–switch to distilled water to extend lifespan.
Attachment-Specific Wear Patterns
Valve membranes in detachable mouthpieces harden after 200–300 uses, causing slowed mist delivery. Test by timing a full dose: degradation is confirmed if nebulization exceeds 10 minutes. Elastic straps on pediatric masks lose tension at 8–10 weeks; cracked straps fail to maintain facial contact, leading to 40% leakage rates. Use thumb pressure to check elasticity–if the strap doesn’t snap back, retire it.
Nozzle tips develop calcium buildup from medication residue, narrowing the aperture by 0.3–0.5 mm monthly. Soak in white vinegar for 30 minutes to dissolve deposits; if clogging recurs within a week, the component’s integrity is compromised. Ultrasonic models show accelerated wear at transducer contact points–inspect for pitting every 50 treatments and replace if erosion exceeds 0.2 mm depth.
