Begin by locating the skimmer basket–typically positioned near the waterline on one side of the basin. Remove debris manually before inspecting the suction grate underneath. If cracked or worn, replace it immediately; a compromised grate reduces efficiency by up to 40% and risks damaging the pump impeller.
Next, examine the sand or cartridge chamber–the cylindrical housing behind the pump. For sand-based units, check the multi-port valve for leaks at the “waste” and “backwash” settings. A faulty valve wastes 500+ gallons per cycle. Cartridge systems require quarterly disassembly; soak elements in a 1:1 muriatic acid and water solution for 2–3 hours to dissolve calcium buildup.
Inspect the pressure gauge mounted on the chamber lid. Readings above 20 psi indicate clogged media or a failing o-ring seal. Replace seals with Buna-N or Viton–EPDM degrades in chlorinated water within 12 months. For pumps, verify the shaft seal isn’t leaking; if water sprays from the motor vent, the seal is blown and requires replacement within 48 hours to prevent motor burnout.
Label all disconnected wiring before servicing the electric motor. Strip insulation from wires using 12-gauge wire strippers–14-gauge overheats in pumps exceeding 1 HP. Tighten electrical connections with a torque screwdriver (set to 12–15 in-lbs) to avoid corrosion-induced resistance, which reduces flow by 22% over time.
Ensure the return jets are unobstructed–angle them downward at 45 degrees to create surface turbulence, preventing dead zones. For in-ground setups, check the automatic cleaner hose for kinks; straighten bends every 2 weeks to maintain GPM (gallons per minute) above 30. Above-ground systems often neglect the weir door–if stuck, use silicone lubricant sparingly; petroleum-based products degrade plastic.
Understanding Your Swimming System Component Layout
Start by identifying the multiport valve–it controls whether water flows to the waste, backwash, rinse, or recirculate settings. Label it first on your sketch to avoid confusion during maintenance. Most units position it atop the tank, connected via a 1.5–2.5 inch union fitting for easy removal.
Examine the tank’s internal assembly: the standpipe (typically 18–24 inches tall) anchors the laterals at the base. Laterals–fragile, slotted tubes–require careful handling; cracks often go unnoticed until debris passes into the return lines. Replace any showing hairline fractures immediately.
Check the pressure gauge location. Mount it on the piping between the pump and vessel, ideally no further than 12 inches from the inlet. A reading above 10–15 psi over baseline indicates a clogged bed or obstructed laterals. Document baseline pressure after each cleaning to track performance degradation.
| Component | Material | Lifespan (Years) | Signs of Failure |
|---|---|---|---|
| Laterals | Polypropylene or ABS | 3–5 | Cloudy discharge, visible cracks |
| O-rings | EPDM or Viton | 2–4 | Leaks around valve, flattened sections |
| Media bed | Sand/glass/zeolite | 5–7 (sand), 10+ (glass) | Grit in returns, uneven flow |
Inspect the air relief valve–usually a small brass fixture on the vessel’s top. Release trapped air after each backwash cycle; failure to do so risks permanent damage to the internal manifold. Turn the handle counterclockwise until a steady stream (not just sputtering) appears, then close.
Trace the plumbing lines from the motor to the vessel: schedule 40 PVC withstands most residential pressures, but flexible PVC (often 1.5-inch diameter) risks collapsing under vacuum if kinked. Mark each pipe section with arrows showing flow direction–backwash hoses often mirror intake lines but serve opposite functions.
Record internal measurements directly on your sketch: depth of media bed (typically 12–18 inches), distance between laterals (check manufacturer specs; most allow 0.5–1 inch spacing), and union fitting dimensions. Note discrepancies–oversized unions may require adapter bushings, while undersized ones crack under strain.
How to Spot Critical Elements in Your Aquatic Cleaning Setup
Start by locating the primary purification chamber–usually a cylindrical or spherical tank with a pressure gauge on top. The gauge reading should sit between 10–25 psi when operational; anything outside this range signals a clogged media bed or faulty valve mechanism. Examine the tank’s lid for a secure O-ring seal; a cracked or misaligned ring leads to leaks and reduces suction efficiency by up to 40%. If the chamber has visible cracks, even hairline fractures, replace it immediately–compromised integrity contaminates backwash cycles and strains the pump motor.
Core Internal Assemblies
The central manifold inside the chamber distributes water through lateral pipes or fingers, crucial for uniform flow. Check these laterals for damage; broken or missing fingers create “dead zones” where debris accumulates. The media bed–typically sand, diatomaceous earth, or cartridge fabric–should sit tightly packed with a clean layer depth of 10–12 inches for sand or a specified weight for DE. Overused media, indicated by discoloration or fouling at a rate faster than every 4–6 weeks, demands urgent replacement. The backwash valve, often a multiport or slide design, must rotate smoothly without resistance–stiff operation stems from mineral buildup or worn gaskets, risking water bypass and ineffective cleaning.
Inspect the waste line connection for blockages; a blocked line backfires during backwash, sending 50+ gallons of untreated water back into the basin. Verify the pump basket’s integrity–cracks or gaps let leaves and grit clog the impeller, cutting circulation efficiency by 30%. Ensure the basket’s lid seals tightly; a loose lid introduces air, causing the pump to lose prime. For setups with an automatic timer, confirm the electrical connections are corrosion-free–moisture in terminals fries circuits, crippling scheduled cycles.
Identifying Components on a Sand-Based Purification System Schematic
Begin by isolating the main housing unit–typically a cylindrical vessel with a domed top. Locate the multiport valve at the apex; its six to eight ports control flow paths like backwashing, rinsing, and recirculating. Label the valve handle first, then trace each port to its function line on the illustration.
Examine the lateral assembly at the base, often resembling a spider-like structure with curved fingers. These slotted tubes distribute water evenly during cleaning cycles and collect debris during filtration. Number each tube in sequence from left to right on the drawing to avoid confusion during reassembly.
Mark the pressure gauge mounted on the output side–it measures water resistance through the media bed. Note the ideal operating range (usually 10-20 psi) directly beside it. Include an arrow indicating the “danger zone” above 25 psi where clogging occurs.
Trace the waste line from the multiport valve to the discharge point. Use a highlighter to distinguish it from the return line, which directs purified water back to the basin. Add a legend specifying pipe diameters (commonly 1.5” for residential units) and whether threading is female NPT or slip-fit.
Mapping Internal Media Zones
Divide the tank interior into three distinct layers: gravel base (12-18” deep), silica sand (20-30” of #20 grade), and a top cap of pebbles or zeolite if present. Annotate each layer’s depth in inches and material type on the cross-section view. Indicate the minimum freeboard space (4-6”) required above the sand to prevent media migration.
Identify the air relief tube–usually a small vertical pipe inside the housing–by its capped top. Label its purpose: venting trapped air during startup. Add a note specifying the torque limit (15-20 ft-lbs) for the cap to prevent stripping threads during maintenance checks.

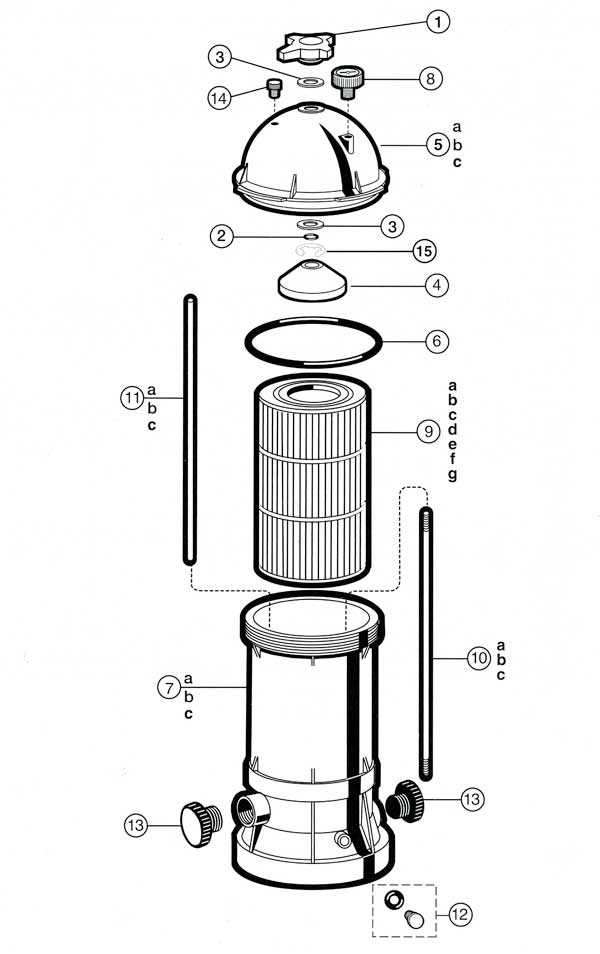

How to Interpret a Cartridge Cleaning System Component Layout
Locate the main housing assembly on the schematic first–this is the cylindrical shell holding internal elements. Identify the top sealing collar and its corresponding clamp ring; these secure the unit against leaks when pressurized. Check for labeled torque specifications–most manufacturers recommend 25-35 ft-lbs for proper compression.
Trace the inlet and outlet ports next. The inlet typically faces upward or toward the pump connection, marked by a larger diameter than the return line. Note directional arrows on the diagram; incorrect orientation reduces flow efficiency by up to 40%. Measure pipe threads if replacing seals–NPT fittings require PTFE tape applied clockwise to prevent loosening.
Decoding Internal Segments
Examine the pleated media core within the housing. Cartridges with 100-150 square feet of surface area last 3-6 months under average conditions. Find the end caps–upper caps often include built-in air bleed valves where debris accumulates first. Look for differential pressure readings on the legend; normal operating range is 8-15 psi.
The internal riser tube stabilizes the media during backwash cycles. Verify its structural slots align with the housing’s flow channels–misalignment causes channeling, bypassing up to 20% of contaminants. Note gasket placements; EPDM seals withstand chlorine better than silicone at temperatures above 85°F.
Valve and Mounting Assembly
Multiport valves require distinct handle positions: “Waste” diverts unfiltered water at 2,300 GPH, “Backwash” reverses flow at 2,000 GPH. Check for micro-adjustment screws on the valve stem–tightening these prevents handle slippage under pressure. Mounting brackets should align with pre-drilled anchor points; stainless steel 304 resists corrosion longer than galvanized alternatives.
Inspect the pressure gauge placement–ideally 6-8 inches from the inlet. Digital gauges with 0-30 psi range offer ±1% accuracy compared to analog models (±3%). Replace damaged lenses immediately; UV-resistant polycarbonate lasts twice as long as acrylic under direct sunlight exposure.
Identify drain plugs at the base assembly. Standard 1.5-inch bulkhead fittings require Teflon washers for watertight seals. Note pump curves on auxiliary documents; systems with 1 HP motors need minimum 40 GPM flow through 1.5-inch piping to prevent cavitation.
Cross-reference part numbers with the manufacturer’s parts list. OEM cartridges extend cleaning cycles by 30% compared to generic equivalents. Keep a spare housing o-ring; Buna-N expands up to 8% after initial compression, requiring periodic inspection every 50 cycles.
