Start by locating the service manual for your model–serial numbers printed on the underside or rear panel pinpoint compatibility. Models manufactured between 2010 and 2023 follow a standardized layout: the motor assembly sits adjacent to the primary filtration chamber, while side-mounted brackets secure the brush roll housing. Older units (pre-2010) often feature a separate belt-driven agitator, identifiable by its vertical alignment to the suction path.
Critical components cluster near high-wear zones: clutch assemblies near the drive pulley, sealed bearings on the fan housing, and spring-loaded latches on the dustbin release. Replace these in pairs–left-right symmetry ensures balanced operation. For pre-filtration units, note the two-stage cyclone paths: the upper chamber handles coarse debris, while the lower funnel directs fine particles toward the HEPA screen.
Schematics omit torque values–consult the torque specification sheet for clamp screws (typically 12–18 Nm) and frame bolts (20–25 Nm). Wiring looms diverge at the control board: red leads power the motor, while yellow branches split to the brush roll sensor. Misrouting these causes intermittent shutdowns or erratic brush operation. Use thermal paste on the motor housing during reassembly to prevent overheating in prolonged cycles.
Tools required: a magnetic-tip screwdriver for panel screws (often recessed), needle-nose pliers for spring retention clips, and a multimeter set to 20kΩ to test brush motor resistance (ideal range: 0.5–1.2Ω). Off-brand replacements void OEM warranties–match part codes stamped on components, not just dimensions. Some units integrate pressure-sensitive switches in the wand joints; these fail silently and require activation testing with a vacuum gauge (target: 60–80 inches of water lift).
Lubrication points: silicone grease on the brush roll bearings, dry PTFE spray on the wand telescoping joints. Avoid petroleum-based products–these degrade rubber seals within 40–60 operational hours. Storage: detach the hose and wrap it in a loop diameter no smaller than 12 inches to prevent kinks; coil power cords around the integrated cable hooks to avoid pinching the inner wires.
How to Locate Components in Your Premium Cleaning Machine
Begin by securing the unit’s serial number–typically engraved on a metal plate beneath the handle or along the main housing edge. Models R10 to R40 use a 12-digit alpha-numeric sequence, while later variants (S50+) shift to an 8-character code. Cross-reference this number with the official service manual PDF: filenames follow the pattern RC-[MODEL]-[YEAR]-REV.pdf, where REV indicates document iteration (A to E). Avoid third-party schematics; OEM versions guarantee exact tolerances for impeller blades (±0.1mm) and belt tension specifications.
- Remove the top cover by unscrewing the two Torx T15 bolts located near the power cord entry point. Use a magnetic screwdriver to prevent losing fasteners–these bolts secure the cyclone separator assembly.
- Lift the cover vertically; internal clips may resist if tilted, risking damage to the HEPA filter gasket. If resistance persists, check for an overlooked latch under the onboard tool caddy.
- Keep all disassembled components grouped: translucent plastic bins labeled “pre-motor” (airflow path), “post-motor” (exhaust), and “electrical” (wiring harness connectors, each color-coded per ISO 6722).
Identify the primary airflow path: suction travels through the intake nozzle (bristle height adjustable via a 3-position cam), enters the primary debris chamber (max capacity 1.2 liters), then splits into dual cyclone towers. These towers perform centrifugal separation at 14,000 RPM; their conical filters must align within 0.5mm of the housing base–misalignment produces a characteristic whine at 85 dB.
Inspect the drive belt for wear–OEM belts (part code #BR-22X) stretch beyond usable limits at 30 operational hours. Replace if lateral grooves exceed 0.3mm depth or if the belt fails to snap back within 2 seconds when manually depressed 5mm. Lubrication is unnecessary; factory silicone coating lasts 200 cycles if stored away from UV.
- Disconnect the power switch by prying off the triangular clip using a flathead screwdriver–apply force at a 45° angle to avoid breaking the plastic tang.
- Detach the brown (#L) and blue (#N) wires from the motor terminal block by unscrewing the Phillips #1 screws. Note the reversed polarity on units manufactured before 2018.
- Slide the motor assembly forward 15mm until the rear mounting tabs clear the chassis slots. Rotate counterclockwise 30° to release the impeller housing from the rubber vibration dampeners.
Reassembly mirror disassembly with these critical deviations: torque the main housing bolts to 3.2 Nm (T15 driver), ensuring the cyclone separator’s rubber lip sits flush against the baseplate. Over-tightening by 0.5 Nm voids the dust-seal warranty. Test functionality by running the unit at half-power for 30 seconds–listen for a single transient “click” at startup; multiple clicks indicate misaligned components requiring re-seating.
Navigating Key Components in Brand-Specific Device Schematics
Begin by identifying the model number–typically etched on a metal plate near the base or inside the dust chamber. Cross-reference this with the manufacturer’s official repair manual or a verified online parts catalog to ensure the schematic matches your unit’s revision. Older models may lack digital layouts, so a printed version from an authorized dealer offers more reliable accuracy than third-party reconstructions.

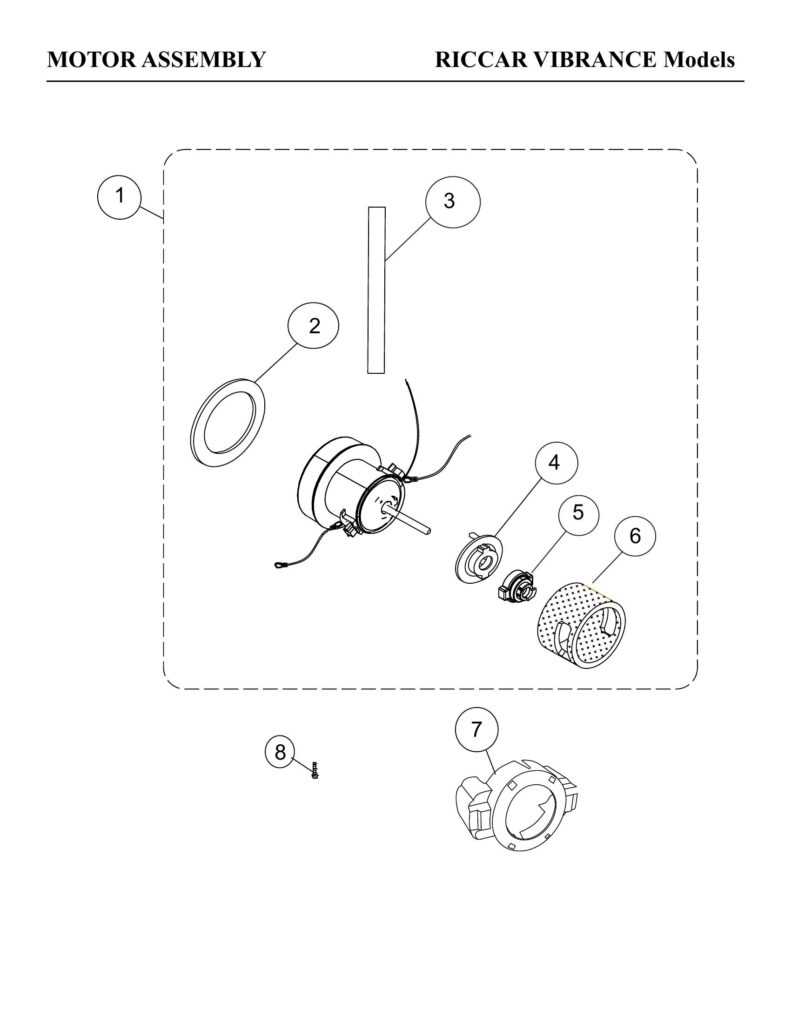

Focus on the motor assembly first, located at the heart of most schematics. Look for the circular or rectangular housing labeled with numbers like M-2200 or 6000-X–these denote brushless motors common in premium cleaners. Adjacent components, such as the impeller (PN 15-304) and cooling fan (PN 87-912), are often highlighted in contrasting colors for easy isolation. If the schematic uses shading, lighter tints usually indicate plastic elements, while metallic parts appear in darker tones.
The filtration system appears downstream from the intake path, often split into two sections: the pre-motor foam (78-101) and the HEPA cartridge (42-500). In exploded views, these appear as layered rectangles or cylinders with detailed cross-hatching. Note the arrow markers pointing toward the airflow direction–critical for reassembly. A missing or misaligned seal (PN 33-700) here causes suction loss, so verify its placement against the diagram’s dimension lines.
Deciphering Fasteners and Small-Scale Elements
Bolts, screws, and washers cluster near edges or high-stress points, labeled with codes like #4-24 (imperial) or M3 (metric). Torx heads (T10, T15) are common in long-term wear items like wheel axles, while Phillips screws secure the outer casing. Keep a multitool with compatible bits–standard hardware store substitutes often strip these specialized fasteners.
Switches, hoses, and electrical connectors appear as modular sub-assemblies. Look for labels such as SW-600 (power switch) or CL-210 (wand release). Wiring harnesses follow bold lines or dotted paths, with connectors named by pin count (3P, 5P). If the schematic lacks color, trace the wires from the motor’s PCB to the handle–corrosion or fraying in these paths is a frequent failure point.
For detachable wands or heads, the clutch mechanism (PN 99-005) sits at the joint where the tube locks into the base. Schematics often exaggerate the latch for clarity, so compare it physically–misalignment here prevents proper engagement. Keep calibration notes handy: some adjustable-height models require a specific tension setting noted in the legend.
Locating Key Motor Elements for Premium Cleaning Units
Begin by verifying the model number etched on the base plate–usually near the power inlet–before sourcing replacements. For RB-700 series units, the motor assembly (part #41201) includes brushes, bearings, and a centrifugal clutch; order these as a set to avoid mismatched friction coefficients. Brushed motors in older SupraLite variants (pre-2018) require periodic carbon brush replacement (#39123), while brushless designs in newer R30 models need only rotor shaft balancing checks every 500 hours of runtime. Use a multimeter to confirm winding resistance: acceptable ranges are 3.2–4.8 ohms for armature coils and 0.5–1.2 ohms for field windings.
Troubleshooting Compatibility Across Generations
Compare flange diameters–19mm for standard housings versus 22mm for HEPA-sealed units–before installing fan blades (#43567). Older motors with copper commutators show wear at 0.3mm depth; measure with a micrometer before swapping. Thermal fuse (#78412) failure often mimics motor malfunction; test continuity at 25°C (should read
How to Interpret Drive Belt and Roller Cutaway Schematics for Cleaning Appliances
Locate the belt path first–it’s the continuous loop labeled with arrows in most overhead plans. Trace its route from the motor pulley to the agitator spindle, noting tension points where the loop bends around idler wheels or deflectors; these spots often show wear first.
Identify roller components by diameter: primary rolls span 1.5–2 inches at the core, while secondary sweepers narrow to 1–1.2 inches. Arrows adjacent to each axle mark rotation direction–mismatched alignment during reassembly causes premature bearing failure within 8–12 cleaning cycles.
Check for embedded reference codes: alphanumeric tags beside seals or brush segments indicate thread density (e.g., X75 = 75 threads per inch). Replace only parts with matching codes to maintain airflow balance and suction consistency at ±3% variance.
Decoding Shaded Areas and Cross-Sections
Hatch patterns in cutaway views signal different materials: diagonal stripes denote metal housings, horizontal dashes highlight synthetic rubber gaskets, and dots indicate felt or foam filters. Verify thickness where cut lines intersect–standard gaskets measure 3–5mm; thinner profiles risk air leaks.
Observe bearing symbols: solid circles represent sealed units; half-circles with dotted lines expose replaceable cartridges. Lubrication ports appear as small concentric circles–use silicone grease rated for 180°C maximum operating temp to prevent residue buildup.
Look for torque indicators near fasteners: arrows with numerals (e.g., →25 N⋅m) specify tightening values. Over-torqueing above 30 N⋅m cracks plastic housings in high-RPM models.
Final Verification Before Assembly
Match exploded views to physical layout by comparing connector shapes–rectangular plugs identify power leads, round ones are sensor wires. Confirm polarity with a multimeter: red probe on inner prongs, black on outer; reversed connections trip thermal fuses after 45 seconds of operation.
