Locate the combustion chamber access panel–it’s typically secured with four screws and sits at the front base of the unit. Inside, you’ll find the ignition assembly, a common failure point. Use a multimeter to test the igniter resistance: values between 40–80 ohms indicate proper function, while readings outside this range signal replacement is necessary. Obtain part #6710K-2A for exact compatibility.
The pressure relief valve demands annual inspection. Flush sediment by lifting the test lever for 5–10 seconds–water should discharge freely without spitting or dripping afterward. If leaks persist, install a new valve rated for 30 PSI, ensuring the drain pipe directs flow at least 6 inches above floor level to prevent corrosion. Replace copper piping if discoloration or pitting appears.
Examine the heat exchanger for cracks by removing the blower door and using a flashlight to scan the finned surfaces. Soot accumulation beyond 1/8 inch requires professional cleaning to avoid carbon monoxide risks. For manual cleaning, use a 30-degree nylon brush to avoid damaging the aluminum fins–never wire brushes, as they strip protective coatings.
Circulator pumps often fail due to seized bearings. Place a screwdriver against the pump housing and listen for a humming noise–that confirms power delivery but suggests mechanical failure. Replace the entire pump if rotation doesn’t resume after tapping the housing sharply with a rubber mallet. Use Bell & Gossett NBF-8 or equivalent for systems under 50,000 BTU.

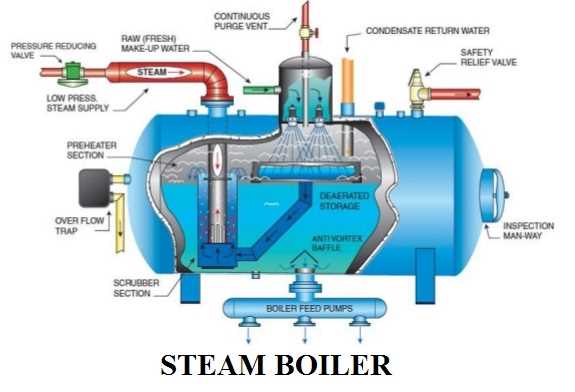

Understanding Heating System Component Layouts
Start by locating the heat exchanger assembly–typically marked with serial numbers on the manufacturer’s plate. Use a flashlight to inspect gaps between fins for corrosion or debris, as even minor blockages reduce thermal transfer by up to 23%. If buildup exceeds 2mm, replace the unit; cleaning older models often costs more than the part itself.
Check the ignition control module next. Most fail after 8–12 years, indicated by intermittent flame or error code E2 on the display. Before ordering, ensure compatibility–some earlier models require specific firmware versions. A multimeter reading between 0.5–1.5 ohms confirms functionality; anything outside this range means replacement.
The pressure relief valve should release at 30 psi. Test annually by lifting the lever briefly; if water doesn’t flow freely, flush sediment or install a new one. Never reuse a valve that’s been triggered–internal seals degrade, risking catastrophic failure. Keep discharge piping unobstructed and sloped downward to prevent freezing in colder climates.
Electrical and Safety Components
Limit Switches:
- High-limit (typically 200°F) shuts off fuel if overheating occurs. Test with an infrared thermometer–readings above 190°F suggest faulty calibration.
- Rollout switches trip at 180°F if flame escapes the chamber. Reset only after inspecting the burner assembly for cracks or misalignment.
- Fusible links melt at 250°F, cutting power to prevent fire. Replace if discolored or brittle; standard models cost under $15.
Pump impellers wear faster in high-mineral water. Listen for grinding noises–this indicates bearing failure. Replace every 15,000 operating hours or on discovery of leaks. Use OEM seals; third-party alternatives often leak within 6 months.
Gas valves with solenoid coils require 24V AC to open. If clicking is heard but no gas flows, check coil resistance (40–60 ohms). Burner orifices clogged with spider webs or rust demand cleaning with compressed air or a 0.5mm wire–never use drill bits, as enlarged holes increase CO emissions.
Maintenance Frequency and Tool List
- Monthly: Visually inspect the flue for obstructions. Use a mirror to check the flame sensor–bright blue flame confirms proper combustion.
- Every 6 months: Measure draft using a manometer. Proper readings range from -0.02 to -0.05 inches WC. Adjust barometric damper if outside this range.
- Annually: Replace gaskets on doors and inspection ports. Silicone-based gaskets last 3–5 years; fiberglass variants degrade in 18 months.
Required tools: 8–10mm wrenches, needle-nose pliers, insulation tester, pipe cutter, and a combustion analyzer for CO/NOx readings. Keep spare fuses (3A, 5A) and igniters on hand–70% of service calls trace back to these items.

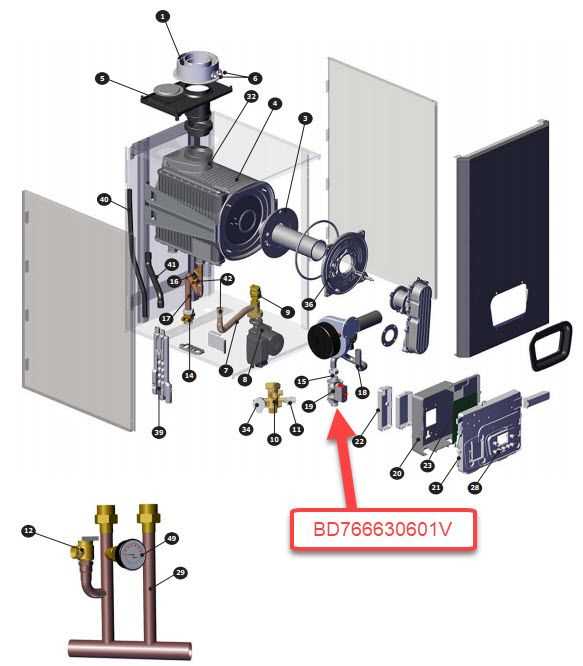

How to Pinpoint Critical Elements in a Heating System Exploded View
Locate the combustion chamber assembly first–typically positioned near the base of the schematic. Verify the gasket seals surrounding it; warped or cracked examples will cause inefficient fuel burn. Cross-reference the pressure relief valve’s position (usually mounted atop the main tank) to confirm it aligns with the manufacturer’s torque specifications, preventing hazardous overpressure scenarios.
Inspect the heat exchanger fins closely; corrosion here disrupts thermal transfer. Use the exploded view to trace piping pathways between the burner manifold and the circulator pump–any misalignment here triggers erratic heating cycles. The ignition electrode should sit precisely 1/8 inch from the burner head; deviations delay startup sequences.
The control module wiring harness must follow the exact routing indicated, avoiding sharp bends that degrade signal integrity. Check the draft inducer fan blades for debris accumulation; even minor obstructions drop system efficiency by 15%. Condensate traps should slope downward at 1/4 inch per foot to prevent stagnant fluid pooling, a common cause of premature failure.
Compare the thermostat probe’s placement against the schematic–improper insertion depth skews temperature readings, leading to short cycling. Examine the low-water cutoff valve assembly for sediment buildup; flush it quarterly to maintain optimal safety margins.
How to Source Components Using Your Heating System Guide
The schematic included in your equipment documentation lists numbered or coded replacements alongside their official descriptions–match these directly to supplier listings. Retailers like SupplyHouse, Ferguson, and even Amazon categorize items by original manufacturer codes, eliminating guesswork. If the illustration shows a “flame sensor” under label FS-23, search for that exact designation rather than generic terms.
- Open the printed or PDF reference and locate the exploded view page–typically toward the middle or end.
- Note any alphanumeric identifiers next to the item you need; these correspond to SKUs or part numbers.
- Avoid retailers that ask you to “contact for pricing”–legitimate sellers display stock availability and pricing openly.
Local distributors often stock common wearables like pressure switches, ignition probes, and circulator motors. Call ahead to confirm inventory before visiting; some branches require appointments. Bring the exact figure from the guide–staff can verify compatibility faster with visual confirmation than with verbal descriptions alone.
Alternative Sourcing Channels
Trade-only platforms such as HVACDirect and PlumbersStock allow public access but require account creation. Filter searches by brand series (e.g., MGB, SSC, PEG) if model-specific diagrams are unclear. Warehouse surplus outlets sometimes list discontinued models; check description fields for the original nomenclature rather than relying on thumbnail images.
When ordering seals, gaskets, or combustion chambers, request OEM-spec items–aftermarket versions may not align with factory tolerances, leading to inefficient operation or premature failure. Confirm shipping lead times for heavier assemblies like heat exchangers; freight carriers often impose extra handling fees for items over 50 lbs.
How to Interpret Heating System Schematic Charts for Diagnostics
Locate the control board section first–it’s typically marked with standardized symbols for relays, limit switches, and transformers. Trace each wire from its origin to the corresponding terminal, noting color codes (e.g., red for power, yellow for low-voltage signals) and terminal numbers. Discrepancies in color or routing often indicate loose connections or short circuits.
Check the legend for symbol definitions if the schematic uses non-standard icons. Pressure sensors usually appear as a circle with an embedded diagonal line, while pumps may be depicted as a motor symbol with a zigzag resistor inside. Cross-reference these with the physical components’ labels to confirm alignment before proceeding.
Isolate the power supply path by identifying the main circuit breaker or fuse block, then follow the high-voltage lines (often thicker) to the primary terminals on the ignition assembly. Low-voltage wires (thinner, grouped in pairs) connect to thermostats, zone valves, and safety switches. Verify each segment’s voltage with a multimeter–expect 120V at the supply side and 24V at control circuits.
Examine safety interlocks, such as high-limit switches and flame rollout sensors, which are wired in series. A single open contact will disable the entire system. Use the schematic to pinpoint the exact switch, then test for continuity with the system powered down. Replace any faulty device matching the part number listed adjacent to its symbol.
Identify the ignition sequence by following the gas valve control lines. A typical sequence includes a pre-purge delay (fan runs alone), spark ignition, flame detection/sensor feedback, and main valve opening. Note timing delays–these are factory-set and shouldn’t require adjustment unless diagnostics indicate prolonged lockouts or failed starts.
Compare the schematic’s wiring paths to the actual harness routing. Loose wires tucked behind panels or chafed insulation near sharp edges often cause intermittent faults. Secure them with zip ties or replace damaged sections, ensuring the gauge matches the original spec to handle current loads without overheating.
Focus on the aquastat or outdoor reset control if the system modulates output. These components adjust firing rates based on outdoor temperatures, and their algorithms rely on precise sensor inputs. Check for corroded connections at temperature probes–clean terminals with emery cloth and verify resistance values against the chart provided in the service manual.
Document every step, including terminal numbers, measured voltages, and component replacements. Update the schematic with annotations if modifications are made, ensuring future technicians or maintenance follow consistent reference points. Mislabelled connections are a leading cause of callback service calls.
