For quick identification of worn or broken elements, refer to the official schematics provided in the operator’s manual specific to your model number. Models produced between 2015 and 2023 typically include labeled illustrations on pages 28–35, grouped by functional assemblies: auger housing, impeller chamber, gearcase, and engine block. If your manual is missing, download the PDF from the manufacturer’s support portal using your serial number–usually stamped on the rear frame near the wheels.
Key components requiring frequent inspection include the shear pins (part numbers ending in -SP), skid shoes (-SK), and drive belts (-DB). Replace shear pins immediately if bent or sheared–continuing operation with damaged pins risks irreversible gearcase failure. Skid shoes should be flipped or replaced when the wear indicator grooves disappear; failure to do so will accelerate auger wear. Drive belts typically last 2–3 seasons under moderate use; inspect for cracks or glazing during routine maintenance.
When ordering replacements, specify the exact model variant–eight-inch auger models use different components than twenty-four-inch units. Third-party vendors may offer equivalent parts, but verify compatibility using the original OEM reference numbers. Avoid aftermarket augers or impellers unless explicitly certified for your unit; improper tolerances can lead to uneven snow discharge or premature wear on the gearcase bearings.
For models equipped with electric start, check the battery voltage (12V) and terminal connections every pre-season. A voltage below 12.4V indicates a failing battery; replace it before cold weather reduces cranking power. Fuel stabilizer should be added to gasoline at the end of each season to prevent gumming of carburetor jets–a common failure point after extended storage.

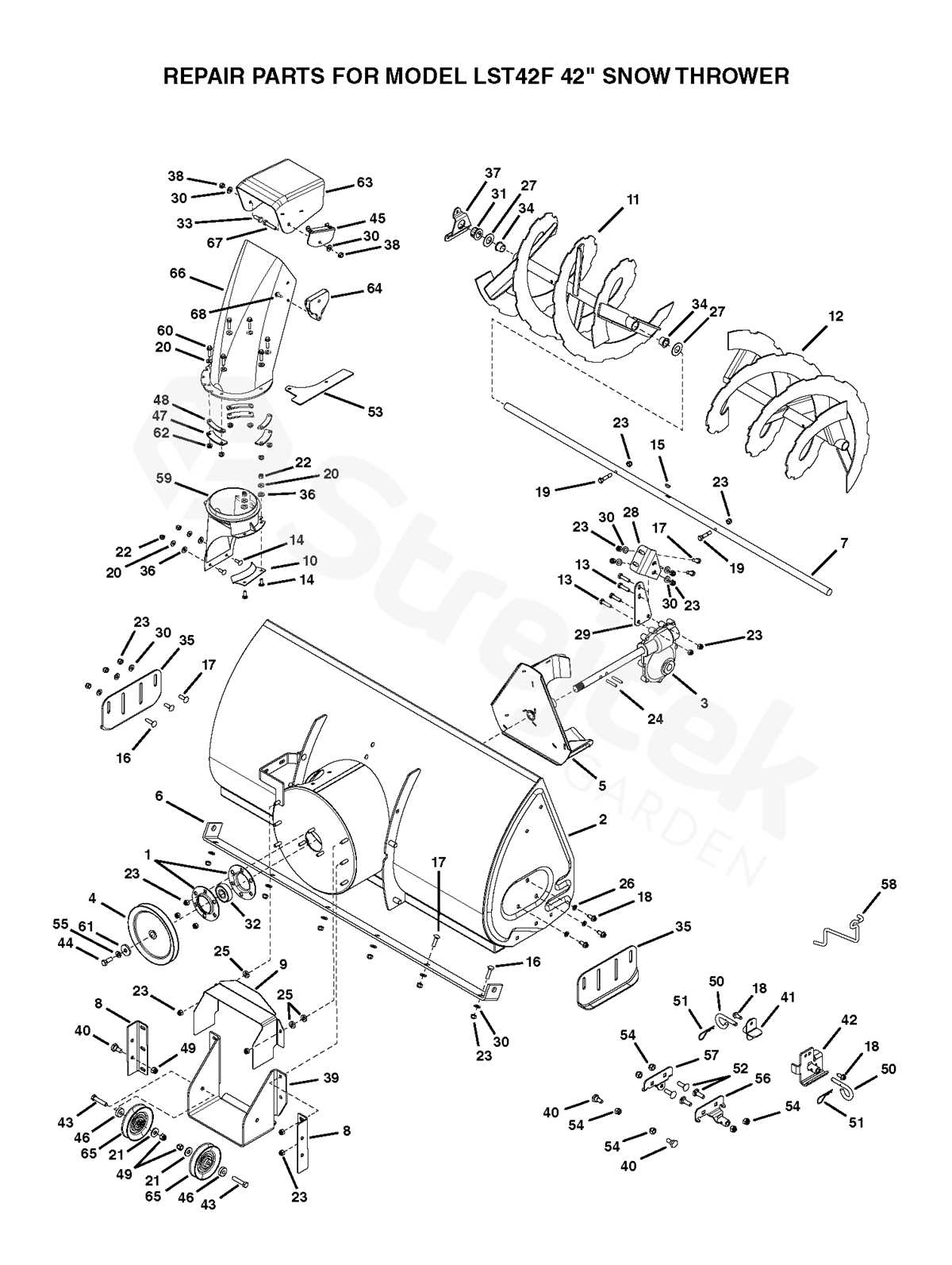

How to Locate Key Components in Your Winter Equipment Schematic
Start by identifying the impeller housing–typically positioned at the rear of the unit’s auger assembly, marked with a part number beginning with “093”. This component directs slush discharge through a curved chute, and its efficiency hinges on verifying the gasket (O-ring, 072-0437) is intact. If torn, replace it immediately to prevent ice buildup that jams the system. Refer to the exploded view on page 12 of the official manual; the impeller’s blades should align perpendicular to the drive plate for optimal torque transfer.
Critical Wear Items and Their Lifespans
| Component | Part Number | Expected Service Life (Hours) | Signs of Failure |
|---|---|---|---|
| Auger shear pins | 024-0220 | 10-15 | Bent pin shanks, audible clicking during operation |
| Friction wheel | 026-0118 | 80-100 | Slick surface, uneven traction on asphalt |
| Discharge chute crank | 050-1215 | 50 | Limited rotation, stiff gears under load |
Prioritize inspecting the auger belt (serpentine, 083-0071) before each season–compare its width against a new belt; deviation exceeding 1/16″ warrants replacement. The belt’s tension pulley (037-0032) must rotate freely without lateral wobble; grease bearings annually with synthetic lubricant (NLGI #2) to avoid premature seizing. For models equipped with electric start, test the armature (010-0060) with a multimeter; resistance between commutator segments should read 0.5–1.2 ohms–values outside this range indicate winding damage.
Locating Manufacturer-Authorized Equipment Schematics on the Web
Begin your search at the brand’s primary support portal: ariens.com/support. Select the exact model from the drop-down menu or enter the serial tag found on the rear frame decal. Each product page loads an interactive schematic where components are clickable–hover pins reveal OEM labels, part codes, and live inventory status. For vintage units no longer listed, use the “Legacy Models” filter; exploded views and service bulletins remain archived indefinitely.
Third-Party Sources Verified by Dealers
- Jack’s Small Engines – jackssmallengines.com offers downloadable PDF diagrams cross-referenced by engine type, not just chassis; filters allow sorting by belt size (e.g., 4L, 12-inch) or impeller pitch. Each document includes torque specs and lubrication points.
- Partstree – partstree.com aggregates official manuals from U.S. dealers; search by serial prefix (e.g., “924” for Classic series) to pull 3D-rendered diagrams–zoomable layers isolate transmission housings or auger gears.
- eReplacementParts – ereplacementparts.com hosts CAD files compatible with most 3D viewers; model identifiers (e.g., “AX 24LE”) link to torque-sequenced assembly videos.
- Enter exact model digits–hyphens matter (e.g., 924010 vs. 924011).
- Toggle “Hide Non-Stock” to exclude aftermarket upgrades.
- Export diagrams in SVG for shop-floor printing.
Locating Critical Elements in Your Equipment Schematic
Begin by isolating the engine assembly in the center-top section of the technical drawing. Modern 24-inch to 36-inch models typically label the power unit with alphanumeric identifiers like E-101 or P-205, positioned near the fuel tank and carburetor. Trace cooling fins first–these vertical ridges confirm you’ve found the correct area. The ignition module sits adjacent, often marked IG-42 or SP-300, distinguishable by two small wires exiting a black rectangular casing.
Follow the drive system lines downward from the engine. On 824-series units, the friction disc appears as a circular plate (FD-51) connected to two cables; one leads to the control lever, the other to the auger engagement mechanism. Verify alignment by ensuring the cables intersect at a right angle before splitting. Gearbox housings are cast-metal boxes (GX-17) with four bolts securing them–never confuse these with the lighter aluminum impeller housing (IM-9), which lacks bolt holes.
Auger components occupy the front third of the schematic. Identify the shear pins (SP-7) as tiny circles intersecting the helical blades–they’re the only removable fasteners here. Scraper bars (SB-22) run parallel to the housing base, depicted as elongated rectangles with tapered edges. Chute assemblies split into three sub-assemblies: the directional collar (DC-3), deflection lever (DL-15), and discharge tube (DT-11), each numbered in ascending order outward from pivot points.
Locate the skid shoes (SS-400) at the absolute base of the front end. These adjustable plates have elongated slots, always oriented perpendicular to ground contact. The welded couplers (WC-8) securing them to the frame appear as solid black rectangles–no bolt heads should be visible here. Spring-loaded idler pulleys (IP-14) follow the belt path behind the engine, recognizable by coiled symbols with tension arrows pointing away from their mounting points.
Cross-reference labels with the legend column–numbers increasing sequentially indicate assembly hierarchy. For instance, component AR-30 outranks AR-31, which nests inside it. Color-coding varies: red denotes high-wear items, blue indicates adjustable assemblies, while dashed lines mark internal mechanisms hidden during normal operation. When replacing augers, note the counter-clockwise rotation arrows (R-2)–failure to respect this direction during reassembly voids torque specifications.
Step-by-Step Guide to Locating the Rotary Cutter and Fan Assembly in Schematics
Begin by identifying the central shaft near the intake chute–this is the primary reference point. The rotary cutter (auger) sits directly behind the housing’s front plate, typically depicted as a helical or spiral component spanning the width of the collection chamber. Look for labels like “primary feed mechanism” or “conveyor blade” in exploded views. If the schematic uses color coding, the cutter is often highlighted in bold blue or green.
Key Visual Markers for the Rotary Cutter
- Shape: Curved, segmented blades extending horizontally.
- Position: Aligned with the intake opening, positioned to funnel debris toward the rear.
- Material: Usually indicated as hardened steel or reinforced polymer in legends.
- Fasteners: Secured by shear pins or bolts marked “SP” or “B” in the reference list.
Next, trace the pathway from the rotary cutter to the fan assembly (impeller). This component is nested deeper, just before the discharge chute, and resembles a set of curved fins or paddles arranged radially. Schematics often isolate it in a separate sub-assembly view, labeled “secondary processing unit” or “velocity wheel.” The fan’s diameter correlates with the chute’s exit diameter–measure both to confirm placement.
Pinpointing the Fan Assembly
- Locate the discharge chute’s internal cross-section.
- Observe a circular component with 3-6 blades angled toward the outlet.
- Check for labels like “accelerator” or “deflector wheel.”
- Note adjacent parts: The fan usually sits between the cutter’s rear mounting plate and the chute housing, sharing a common shaft.
If the schematic includes a parts list, cross-reference the auger’s and fan’s item numbers against their descriptions. The auger’s numbers often start with “A” or “C” (e.g., A-1501), while the fan may use “I” or “V” (e.g., V-220). Verify clearances–auger blades should maintain 2-5mm spacing from the chamber walls, and the fan’s blades must align flush with the chute’s inner lip to prevent jams.
Key Wear Components and Where to Find Them in Equipment Schematics
Start by locating the auger drive belt–typically marked near the impeller housing in schematics under codes like “Belt-540” or “Drive-12.5×720.” The belt connects the engine pulley to the auger shaft, and signs of fraying or glazing mean it needs replacement. Look for the sheave assembly next; it’s often color-coded in diagrams with yellow or red outlines, attached to the frame just behind the chute rotation gear. If the belt slips frequently, check the sheave wheels for cracks or uneven wear.
The chute control cable and its associated components fail after prolonged exposure to freezing temperatures. Diagrams label this as “Cable-Chute-Ø4mm” or “Wire-Assembly-90cm,” usually routed from the handle grips to the chute rotation mechanism. Inspect the cable housing for kinks, rust, or stiffness–replace if movement feels sluggish. The auger shear pins (often stamped “Pin-¼x1.25”) appear in exploded views near the auger blades; these are sacrificial and break under stress to protect the gearbox. Always keep spares on hand.
Impeller blades wear faster than other elements, especially if the machine frequently encounters gravel or ice patches. Schematics show these as “Fan-Blade-Set” or “Impeller-300mm,” positioned directly behind the auger. Measure blade thickness–if reduced by 2mm or more, order replacements. The skid shoes (labeled “Shoe-Steel-6×150”) sit beneath the intake housing; they elevate the unit to prevent scooping debris. Excessive wear here scrapes the pavement, so flip or replace them when grooves exceed 3mm.
Engine components like the carburetor and spark plug appear in dedicated engine sub-diagrams. The carburetor (“Carb-Model-799”) connects via fuel lines near the tank, while the spark plug (marked “Plug-BRG4”) threads into the cylinder head. Fouled plugs or gummed-up carburetors cause hard starts–clean or replace these biannually. The fuel pump (“Pump-12V-Mini”) sits adjacent to the carburetor in electric-start models; if fuel flow weakens, check for cracks in the diaphragm or clogged inlet filters.
Gearbox lubrication ports are identifiable in schematics by annotations like “Fill-Point-90W” or “Grease-Zerk-¼x28.” These appear near the auger shaft housing–top them off with winter-grade grease every 50 hours of use to prevent seizing. The friction wheel (“Wheel-Friction-Ø100”) engages the drive system; if the machine struggles to move forward, inspect for glazed rubber or deep grooves. Replace immediately if the diameter is worn below 95mm.
Electrical schematics isolate ignition modules (“Module-CD-14A”) and switches, often grouped near the control panel. If the engine cranks but won’t fire, test resistance across the ignition coil–values under 2.5 kΩ indicate failure. Light kits (“Light-Assembly-12V-50W”) attach via quick-connect plugs; corrosion here dims output–clean terminals with dielectric grease. For models with heated handles (“Grip-Heated-LEFT”), check wiring harnesses for exposed copper or brittle insulation, especially where they bend near the handlebar mount.
