Begin by identifying the exact model variant–variations in serial numbers determine compatibility. The undercarriage, hydraulic pumps, and engine assemblies differ between production years, even within similar frame sizes. Download the official service manual from the manufacturer’s portal (access codes are typically found on the chassis plate or engine block). Cross-reference the serial number against the manual’s index to avoid misordering seals, belts, or electrical connectors, which often lack visual distinction but fail under mismatched specifications.
Critical areas to inspect first:

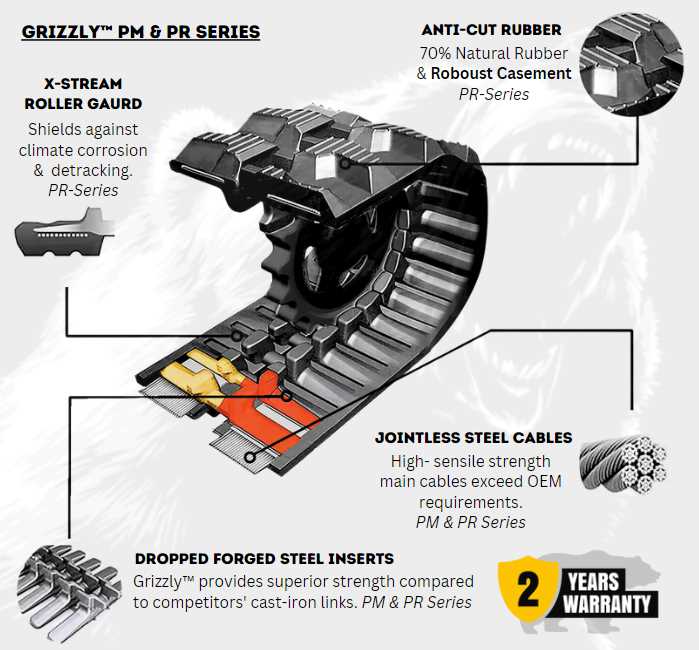

Undercarriage tracks and rollers: Measure track pitch and width; OEM replacements cost 30–40% more than aftermarket equivalents but last 25% longer in rocky conditions. Verify sprocket tooth count–each tooth supports 800–1,200 lbs, and wear beyond 1.5mm reduces traction efficiency by 18%.
Hydraulic cylinders: Rod diameter and stroke length must match; a 3mm deviation causes 12% increased leak probability. Check piston seals–Parker Hannifin’s 2-2324N outperforms generic seals in temperature resistances above 220°F.
Engine components: Fuel injectors differ between Tier 3 and Tier 4 models; mistakenly swapping them triggers fault codes P0262 (cylinder 1 imbalance) and voids warranty coverage.
Use exploded-view schematics stored in dealer-only databases or third-party aggregators like EquipmentPartsPro. Filter schematics by VIN prefix–earlier models (pre-2018) use 14-digit codes starting with “KLB,” while later units switch to “KLE.” Each diagram includes torque specs (e.g., final drive bolts: 120–140 ft-lbs) and O-ring material codes (Viton for fuel systems, Buna-N for hydraulics).
For rare components (e.g., joystick controllers or ECU modules), contact specialized distributors–lead times range from 5 to 21 days. Document each part’s original packaging labels; labels include batch numbers that resolve warranty disputes faster than receipts alone. If ordering from international suppliers, confirm customs tariff codes–HS 8708.99 incurs a 4.5% duty, while HS 8412.21 carries exemptions.
Understanding Your Compact Track Loader’s Component Layout

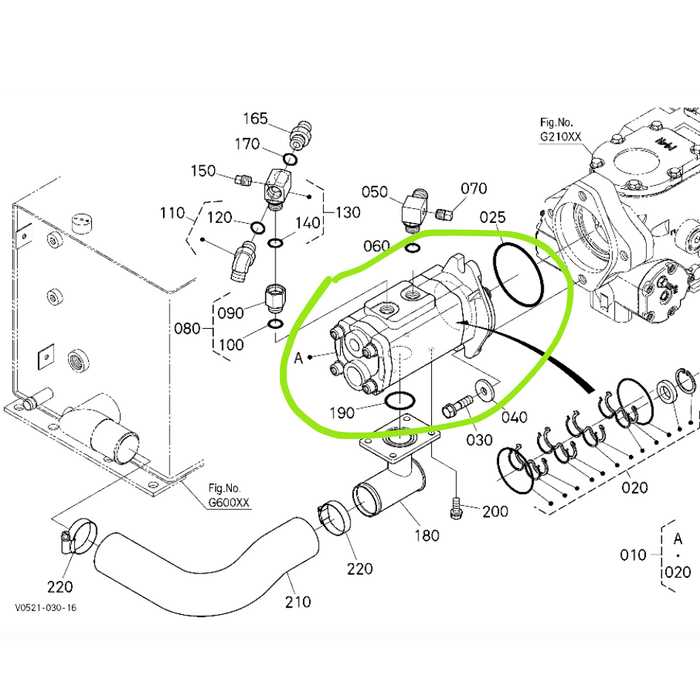

Begin by locating the main hydraulic pump on the right side of the engine compartment. This unit connects directly to the loader’s drive motors via high-pressure hoses–check for O-ring seals (part #123456) if leaks appear near the pump housing. Always replace seals in pairs to prevent uneven wear.
For the undercarriage assembly, focus on the track tension adjustment bolt near the rear idler. A torque specification of 45-50 Nm is critical; over-tightening can snap the adjustment spring (component #789012). Keep a spare spring in your maintenance kit–common failure point during heavy mud operations.
The quick-attach plate on the front frame uses two locking pins with grease fittings (item #345678). Apply lithium-based grease every 50 hours; neglect leads to seized pins requiring torch cutting for removal. The release mechanism’s pivot bushings (part #901234) wear faster when exposed to abrasive materials like sand or crushed stone.
Electrical diagnostics start at the central fuse box beneath the operator’s seat. Each 30A fuse correlates to specific circuits–label them during inspection: “aux hydraulics” (F2), “battery” (F3), “engine ECU” (F4). Blown fuses often indicate deeper issues: a shorted solenoid valve or corroded wiring harness (component #567890).
Inspect the radiator core monthly for bent fins–straighten with a fin comb (tool #T-9876) to maintain airflow. The cooling system’s bypass valve (item #234567) must open at 1.5 bar; test pressure with a gauge before failure causes engine overheating. Replace the thermostat (part #890123) if temperatures exceed 100°C during operation.
The operator’s cab controls include potentiometers for auxiliary functions (assembly #456789). Calibration requires a multimeter: turn each dial incrementally while reading resistance–values should range from 0.5kΩ to 4.5kΩ. Erratic readings signal a need for replacement, typically caused by moisture ingress or worn carbon tracks.
For the final drive motors, focus on the planetary gear set. The sun gear (component #678901) endures extreme loads; listen for grinding noises–indicates worn bearings (item #123450). Rebuild kits include seals, bearings, and shims–follow torque specs for carrier bolts (120 Nm) to prevent gear misalignment. Failure analysis often reveals insufficient lubrication; use synthetic 90W gear oil for temperature extremes.
Locating Authorized Compact Track Loader Schematic Resources
The official manufacturer’s portal remains the primary source for accurate breakdowns of equipment components. Visit kubota.com/partslookup and enter the model code–typically found on the data plate near the operator’s station. This system provides interactive schematics with zoom functionality and clickable part numbers linked directly to inventory and pricing.
Dealership networks maintain their own digital libraries accessible through secured portals. Select authorized service centers like Bobcat of Atlanta or Martin Implement offer PDF catalogs categorized by sub-assemblies–hydraulic circuits, structural frames, or engine mounts. Request access via service inquiry; most provide expedited logins for registered owners.
- EquipmentLocator: hosts downloadable exploded views indexed by serial number ranges. Filter by attachment compatibility (e.g., coupler plates, track tensioners) for precise matches.
- PartingOut: aggregates OEM manuals from dismantlers; search “SVL-series” under “Machine Schematics.”
- eBay Parts Reference: sellers often upload scans from service literature–verify resolution quality and source legitimacy before purchase.
Technical forums like HeavyEquipmentForums.com archive older revisions shared by mechanics. Threads tagged “hydraulic diagram” or “undercarriage breakdown” include annotated screenshots with torque specifications and wear limits. Moderation ensures removal of counterfeit materials.
Manufacturing distributors including Tractor Supply and RDO Equipment cross-reference product lines in their POS systems. Onsite terminals allow printing of assembly sequences with real-time stock availability–quote customer support for configuration-specific layouts (e.g., high-flow hydraulics variants).

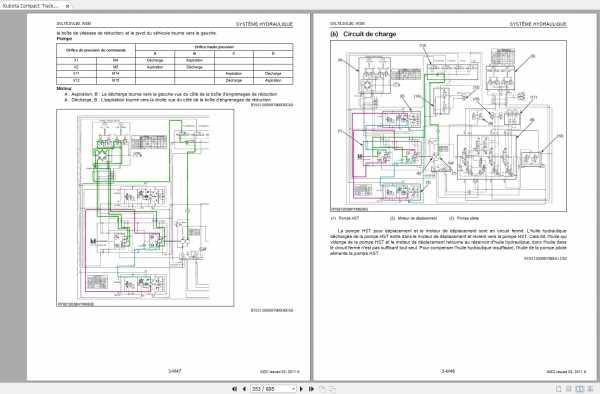

Decoding Hydraulic Circuit Elements in Compact Track Loader Schematics
Start by isolating the main hydraulic pump–typically marked near the engine coupling in the upper-left quadrant. Verify its displacement (for this model: 18.5 cc/rev) and output pressure (20.7 MPa) against the legend. Cross-reference the inlet and outlet ports with flow arrows; mismatched polarity indicates incorrect tracing.
| Component | Symbol (ISO 1219) | Functional Check |
|---|---|---|
| Control Valve | ▭ with intersecting lines | Pressurize auxiliary circuit–spool should shift within 0.3s |
| Accumulator | ⬭ with spring | Pre-charge nitrogen to 9.0 MPa; variance >±0.2 MPa requires replacement |
| Cylinder (Boom) | ♏︎ extended | Stroke 850 mm; retract time |
Trace each hose from valve block to actuator, noting diameter (6 mm for pilot lines, 12 mm for power circuits) and material codes stamped every 150 mm–R1 denotes high-pressure synthetic, R3 heat-resistant. Locate pressure relief valves adjacent to critical paths; their cracking threshold (+10% of system max) prevents overload failures. For solenoid-driven sections, confirm 24V DC continuity at connector pins–PIN 1 (red) positive, PIN 3 (black) ground via multimeter test.
How to Pinpoint Critical Components in Your Compact Track Loader’s Engine Schematic
Begin by securing the official technical blueprint for your machine’s powerplant. Locate section labeled “Internal Combustion Assembly” – typically near the front of the document. Identify the air intake manifold first; it’s often marked with a distinct alphanumeric reference (e.g., A-14). Trace the thick solid lines extending from this component to uncover adjacent elements: fuel injectors (two per cylinder) sit directly below, followed by the turbocharger outlet and intercooler piping system. Cross-reference any brackets or mounting points with the corresponding labels to avoid misidentifying brackets for sensors or auxiliary pumps.
Shift focus to the lower half of the schematic where the crankcase and oil circulation network reside. The oil sump filter housing is usually illustrated as a rectangular block connected to a series of dotted or dashed pathways representing oil galleries. Follow these pathways upward to spot the oil cooler (integrated between the filter and engine block) before they split toward the main bearings, camshaft journals, and rocker arms. Note that hydraulic lifters may be grouped together under a separate sub-assembly label (e.g., V-08) rather than individually mapped.
Examine the cooling system diagram segment directly adjacent to the fuel rail. Radiator connections appear as two broad paths ending in triangular symbols for inlet and outlet. Trace coolant flow from the water pump (gear-driven, often depicted with diagonal hatching) through cylinder block passages toward thermostat housing and EGR cooler. Heat exchangers are frequently shown as multi-layered boxes stacked vertically; the primary circuit feeds the turbocharger oil cooler while the secondary bypass loop diverts excess flow when temperature thresholds exceed 92°C.
Verify sensor locations against their electrical schematics counterpart page. Common positions include: crankshaft position sensor (mounted at the flywheel housing flange), camshaft position sensor (directly above intake lobe), and boost pressure sensor (side-mounted near turbocharger inlet). Each sensor typically connects via color-coded wiring harnesses terminating into a central engine control module (ECM) cluster, labeled distinctly from hydraulic control clusters to prevent confusion during diagnostics.
